Description

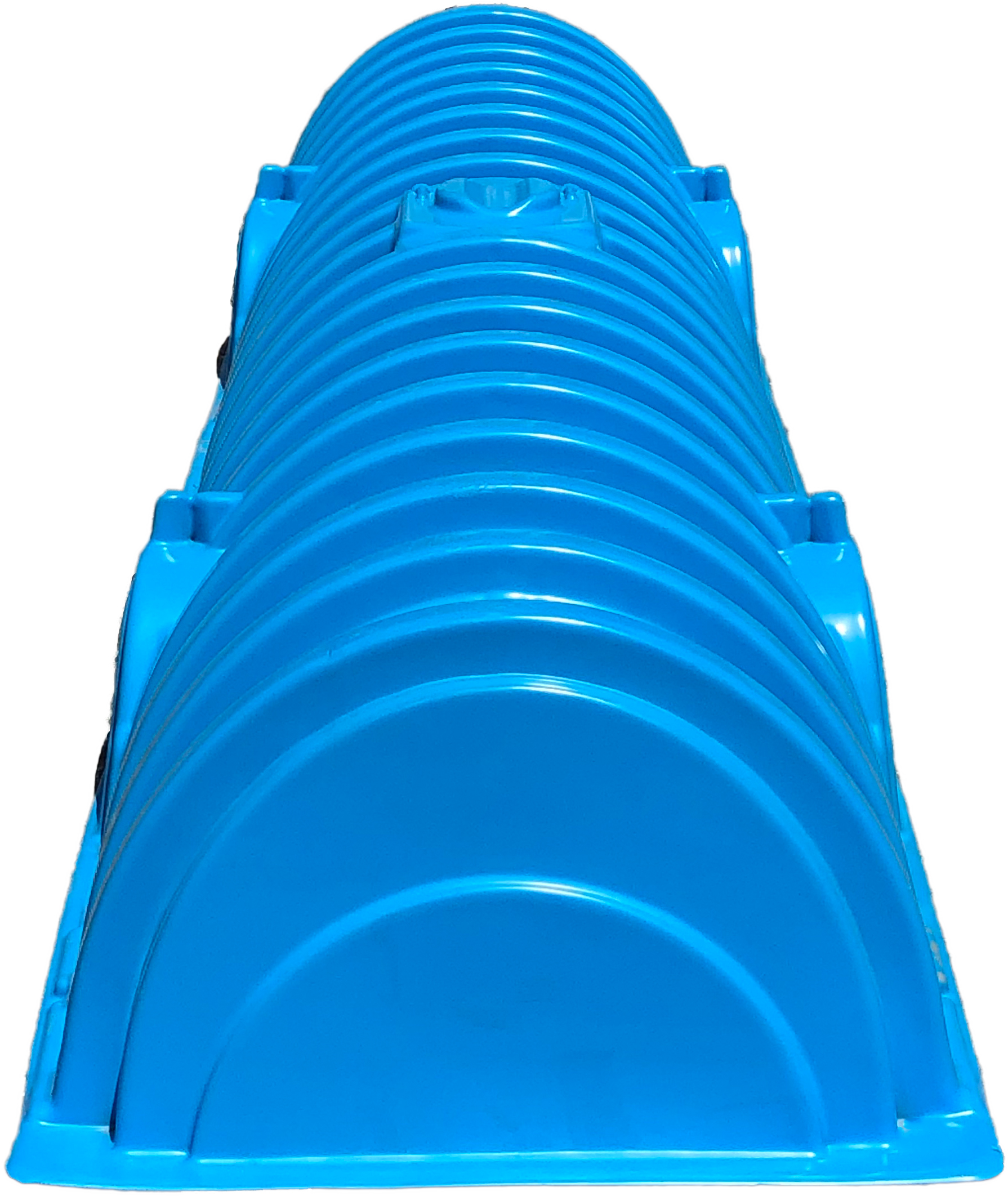

The CULTEC Recharger® 150XLHD is a mid-size, heavy-duty chamber typically used for both stormwater management and septic leachfields. It is taller and offers more storage than the Contactor 100R, making it a “higher profile” option that can reduce the overall footprint of a system.

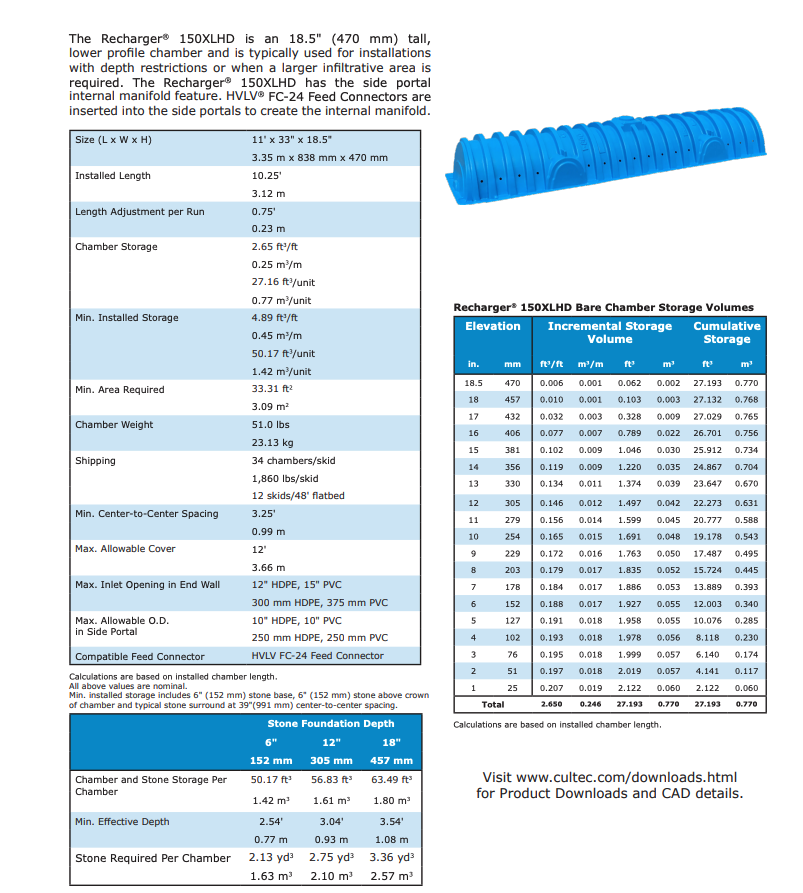

Key Specifications

Dimensions: 18.5 inches (470 mm) tall, 33 inches (838 mm) wide, and 11 feet (3.35 m) long.
Storage Capacity:
- Chamber only: 2.65 (approximately 27.16 per unit)
- With stone (Min. installed): Approximately 50.17 per unit.
Installed Length: The effective length when joined is 10.25 feet (3.12 m).
Max Allowable Cover: Up to 12 feet (3.66 m).
